wtc-gl

WebGL2,
without the boilerplate.

A lightweight toolkit for building fragment shaders, scroll-driven scenes, and simple WebGL scenes.

npm install wtc-gl View on GitHub
What is it?

WebGL2 primitives and high-level recipes that compose.

wtc-gl provides the scaffolding - programs, meshes, cameras, render loops, texture utilities - so you spend time on the interesting parts. Use just the pieces you need, or reach for the opinionated recipes.

FragmentShader

Full-screen fragment shaders

One class, one shader. FragmentShader creates a canvas, wires up u_time and u_resolution, and starts the render loop. Mouse, resize, and pixel-ratio are all handled for you.

View demo →
ScrollRenderer

Inline scenes on any element

One fixed canvas, scissor-tested viewports, one shared render loop. ScrollRenderer anchors independent WebGL programs to DOM elements - no iframes, no per-canvas GPU contexts, no scheduling jank.

View demo →
TransformFeedback

GPU particle simulations

TransformFeedback handles ping-pong buffers automatically. Write your velocity kernel in GLSL, read positions back as attributes - millions of particles without touching the CPU each frame.

View demo →
Demos

See the primitives in action.

Each demo isolates one or two core concepts - textures, framebuffers, webcam input, GPU particles - so you can pull the code apart and adapt it.

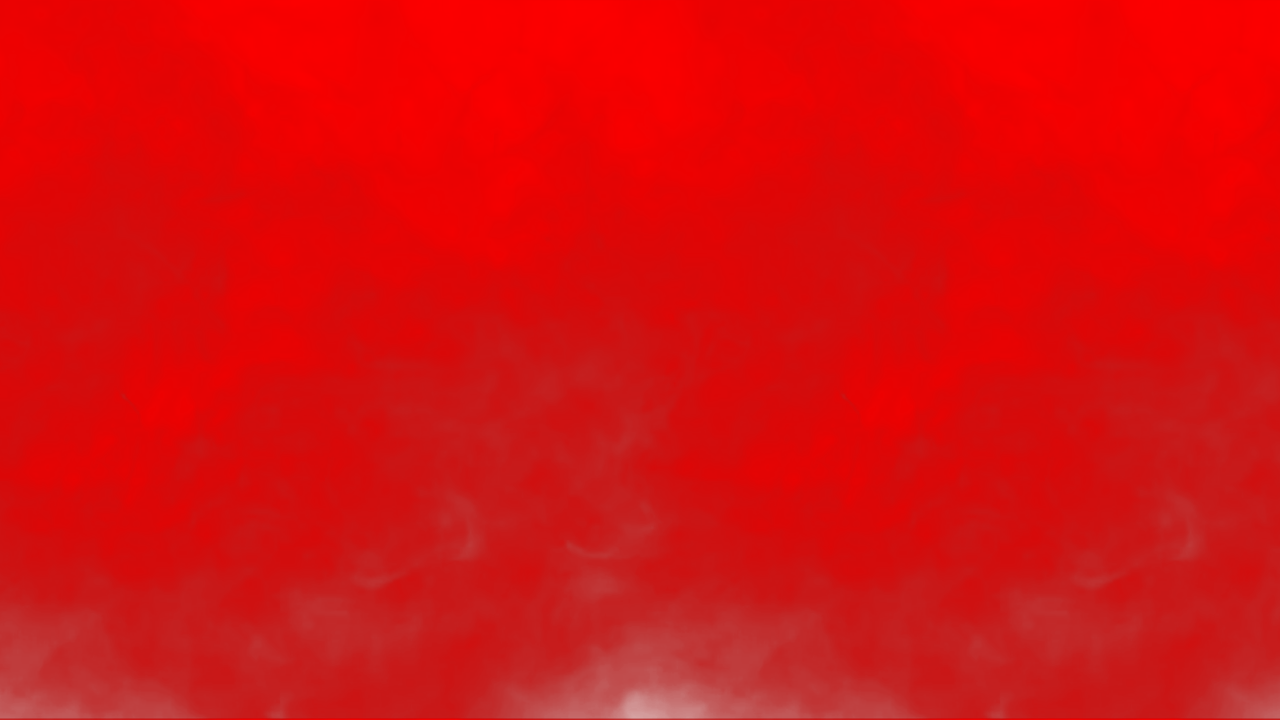

Video texture demo
FragmentShader Texture

Video texture

A video element sampled as a live Texture and fed into a fragment shader each frame. The onBeforeRender hook marks the texture dirty so the GPU always sees the current video frame.

Open demo →

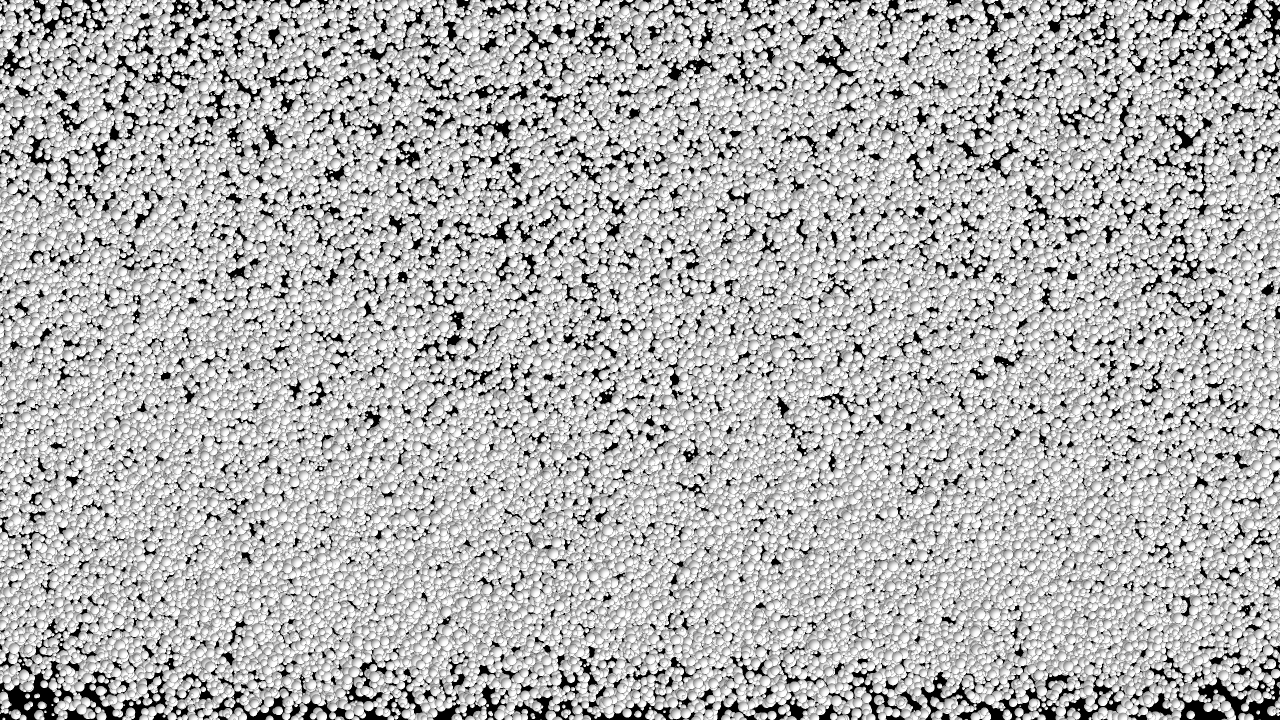

Transform feedback particles demo
TransformFeedback PointCloud Camera

GPU particle simulation

Thousands of particles simulated entirely on the GPU using TransformFeedback ping-pong buffers. Velocity is computed in a vertex shader and fed back as position attributes each frame - zero CPU involvement per particle.

Open demo →
Framebuffer post-processing demo
Framebuffer Texture Program

Framebuffer post-processing

A scene rendered to an off-screen Framebuffer, then composited through a second pass. Demonstrates the render-to-texture pipeline for effects like bloom, blur, and feedback loops.

Open demo →
ScrollImage and ScrollHTML cloth demo
ScrollImage ScrollHTML ScrollRenderer

ScrollImage & ScrollHTML

Three scenes on one canvas. Scene 1: hue ripple at the cursor via Rodrigues rotation. Scene 2: a Verlet cloth simulation deforming an image — scroll to inject inertia, click to grab. Scene 3: the same cloth with a live HTML form as its texture using the experimental HTML-in-Canvas API.

Open demo →
WEBCAM
Framebuffer Texture getUserMedia

Webcam cellular automata

A ping-pong Framebuffer runs Conway's Game of Life where webcam brightness seeds new cells. Living cells inherit the webcam's colour at the moment of their birth, creating a living portrait that evolves frame by frame.

Open demo →
SDF
Mesh Box DollyCamera

Raymarching on a mesh

A raymarching SDF rendered inside the volume of a rotating Box mesh. The fragment shader casts rays from each mesh surface point, infinitely repeating a frame-and-sphere lattice. The cube's model matrix is passed as a uniform so the SDF space rotates in sync with the geometry.

Open demo →
BLADES
ScrollRenderer ScrollScene ScrollImage

Scroll blades

An editorial scroll layout: a fullscreen animated background via ScrollScene, four alternating image/text blades each using ScrollImage for cover-fit, parallax, and chromatic aberration — all on one shared WebGL context.

Open demo →
Get started

A shader on screen in five lines.

import { FragmentShader } from 'wtc-gl'
import myFrag from './my-shader.frag'

const fs = new FragmentShader({
  fragment: myFrag,
  container: document.querySelector('.canvas-wrap')
})

// u_time and u_resolution are wired up automatically.
// Add your own uniforms any time:
fs.setUniform('u_mouse', [x, y])

Install via npm, import from your bundler, and point it at a container. The canvas is created, sized, and animated for you.

For scroll-driven multi-scene layouts see ScrollRenderer →

Core

The building blocks.

Renderer

WebGL2 context creation, pixel-ratio handling, and the main render loop.

Program

Shader compilation, uniform management, and attribute binding in one place.

Mesh

Geometry + program pairing with transform hierarchy via parent/child scene graph.

Geometry

Triangle, Plane, and Box primitives; or supply your own attribute buffers.

Texture

Create textures from typed arrays, images, or video — with format helpers.

Framebuffer

Off-screen render targets for post-processing and ping-pong feedback.

Camera

Perspective and orthographic cameras with look-at and dolly helpers.

Uniform

Typed uniform wrappers that track dirty state and batch-upload efficiently.
